关于 Procore Maps
- 最后更新
- 另存为PDF
概况

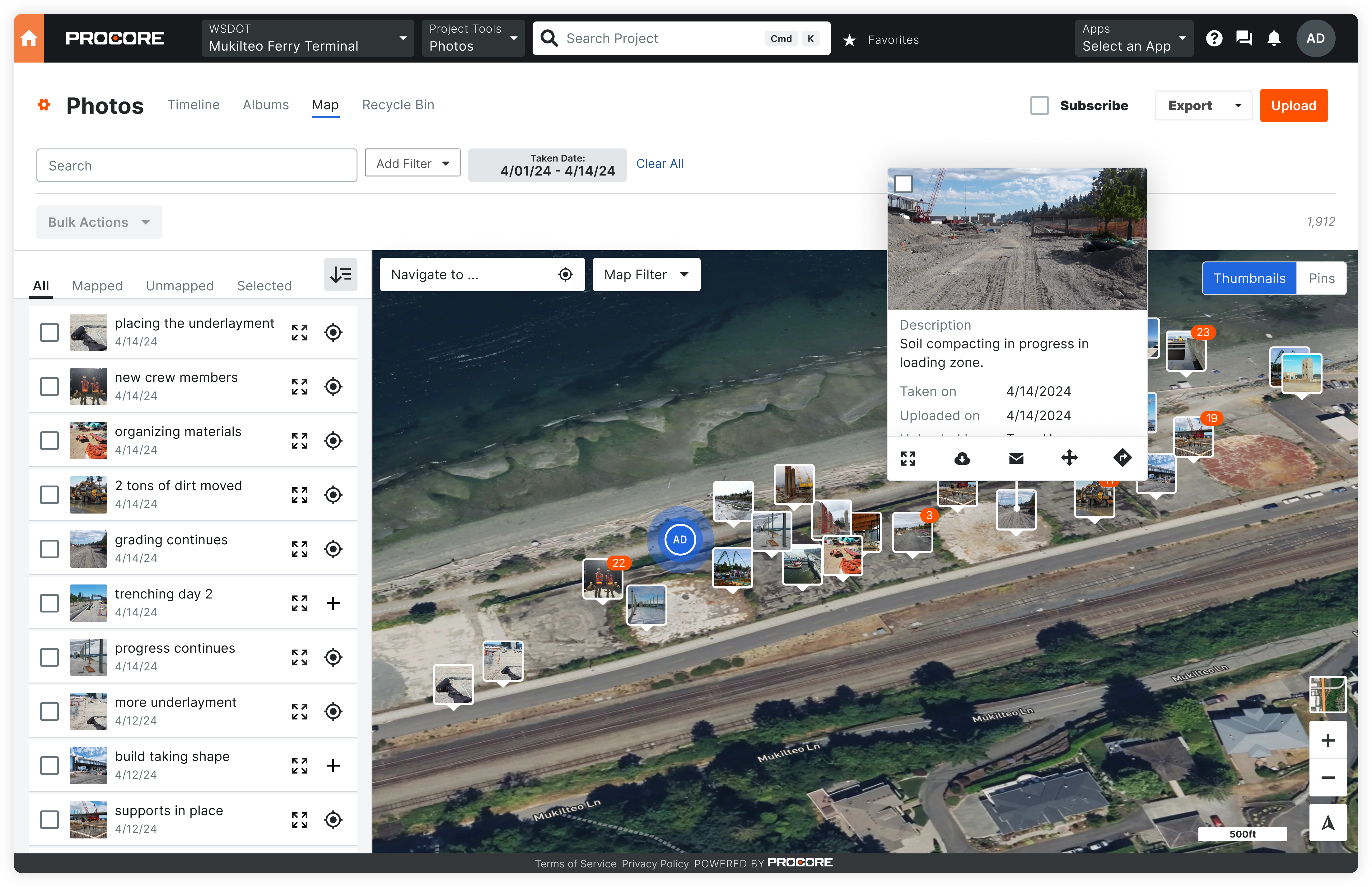

Procore 地图将项目图像无缝集成到易于导航的地图中，让你随时随地均可使用。在交互式地图上查看照片以快速了解工程状态并最大程度减少延误。
按日期筛选照片、查明里程碑、识别障碍并快速采取行动。通过整个团队可以访问的准确地理定位数据，确保项目执行的清晰度和信心。
 |
 |
注意事项
- Procore 地图目前可与照片工具一起使用。
- 地图上显示的所有照片都根据照片中的地点数据显示。如果照片未出现在地图上，则照片可能不包含位置数据。要确认你的照片在你拍摄照片时会收集位置数据，请参阅Android 位置数据和iOS 位置数据。也可以手动将照片添加到地图。请参阅将项图钉添加到地图。
常见问题
- Procore Maps 目前与哪些工具集成？
- 在地图上可以看到哪些照片？
- 如何对照片进行映射？
- 为什么我的照片没有在正确的位置显示？
- 如果人员关闭了 Procore 应用程序的位置跟踪，会发生什么？
- Procore Maps 提供什么级别的准确性？
- Procore 地图和 Procore 地点有什么区别？
Procore Maps 目前与哪些工具集成？
Procore 地图目前直接与照片工具集成，但由于照片工具能够合并其他工具中使用的照片，因此它也间接与图纸、工作日志、尾项清单、观察任务、检查任务和行动计划集成。请参阅配置高级设置:照片，了解有关哪些工具会自动合并到照片工具中的更多信息。
在地图上可以看到哪些照片？
公开照片仅对具有照片工具的只读或以上权限的用户可见。 私密照片仅对有权访问它们的用户可见。
如何对照片进行映射？
Procore 地图使用照片中的地点信息，自动将其放置在地图上。 此位置信息来自设备的GPS。 如果设备的定位服务关闭，则不会保存此信息。 请注意，此数据也可以通过电子邮件或某些 Web 浏览器删除，并且照片将指定为"未映射"，没有纬度、经度值。 要绘制未映射的照片，请参阅将项目图钉添加到地图。
为什么我的照片没有在正确的位置显示？
Procore Maps uses the location information from the photo, or photo attached to an item, to place it on a map automatically. This location information comes from the device's GPS. If the device's location services are off, this information won't be saved. Please note that this data can also be stripped by email or by some web browsers and the photo will be designated as “unmapped” with no latitude, longitude values. To map an unmapped item, see Add Item Pin to Map.
Why aren't my items showing up in the right location?
All photos appear on the map based on the location data in the photo. If the photos do not appear on the map, it is likely, that the photos do not contain location data. To confirm that your photos collect location data when you are capturing photos, you must enable location tracking on your device. See Android Location Data and iOS Location Data.
However, sometimes a mobile device's location services are inaccurate due to issues like lag in location syncing or poor geographic coverage. While Procore cannot improve your device's accuracy, you can purchase third-party devices to enhance it.
Tip
You can manually move items on the map. See Move Item Pin on the Map.What is the best way to add photos to Procore so they appear on the map?
When creating items such as observations, inspections, and punch items, it's best to upload the photo from the device where the photo was taken, such as your smartphone. For third party devices, a direct copy from the camera to a photo app should maintain the necessary metadata.
When photos are transferred from a phone to a desktop, it's possible that the photo's metadata is removed, including the EXIF data needed to place the photo on the map.
Tip
- File format: Use JPEG format, as it usually retains most EXIF data compared to other image formats like PNG or GIF.
- Direct copy: When transferring photos from a camera to your computer, copy the files directly using your file explorer to retain EXIF data.
- Cloud storage settings: When using cloud storage services, select the 'original' quality option to retain EXIF data.
- Sharing as documents: If sending photos via email or messaging apps, attach them as documents instead of directly sharing images.
- Dedicated photo management software: Some specialized photo management software allows for EXIF data to remain intact during transfer.
Can I see mapped data on inactive projects?
Typically, yes. Any newly created items with photos that have EXIF data are automatically mapped on projects, regardless of project status.
However, if your project was inactive prior to Maps becoming generally available on January 22, 2025, your mapped data may not be available. If you need to see mapped data for these projects, please contact Support.
如果人员关闭了 Procore 应用程序的位置跟踪，会发生什么？
如果用户不允许该应用程序跟踪他们的位置，则他们将无法在地图上看到他们的位置，并且照片工具等工具将无法记录照片拍摄地的坐标。 如果照片不包含坐标，则会显示在"未制图"类别中，如果用户想在地图上看到它，则需要手动放置图像。
Procore Maps 提供什么级别的准确性？
Procore 依赖于直接来自用户硬件的GPS数据，这意味着我们对准确性的控制仅限于这些设备的功能。 如需了解GPS数据的准确性，我们建议参考Apple和Google等知名来源发布的外部文章，这些文章阐明了GPS技术的复杂性。 我们相信，定向准确数据的价值可以在决策过程中提供非常有价值的见解和帮助。 还有第三方设备可以在需要的情况下提高准确性。
Procore 地图和 Procore 地点有什么区别？
地图是平台的新增功能，它使用户能够查看地图上的对象，而位置为用户提供了一个可筛选字段，可用于将项目分组在一起。 Procore 中的"地点"设置起来非常麻烦，而且一旦做出努力，价值就有限。 但这种情况已经在改变。 AI 团队最近的工作是自动从建筑图纸中提取地点，目前处于测试阶段。 新成立的地点团队将继续在他们的转换工作的基础上，将地点提升为一个系统对象，而不仅仅是其他对象的标记。 Procore "地点"将扩展以包含它们自己的元数据，并将集成到 2D 和3D的所有空间体验中。 当用户将来使用"地点"标记项时，可以将项自动放置在地图、图纸或模型上其定义的区域内。
查看更多
Recent Changes
Maps for Photos - Generally Available (01/08/2025)
Procore Maps enables users to view photos and other tool items on a map, query them by location, and link to the items across various tools. Procore Maps enhances project execution by providing a comprehensive visual tool that integrates seamlessly with other Procore functionalities, facilitating better planning, execution, and monitoring of construction projects. See Procore Maps.
Maps for Photos - Open Beta (11/04/2024)
Procore Maps enables users to view photos and other tool items on a map, query them by location, and link to the items across various tools. Procore Maps enhances project execution by providing a comprehensive visual tool that integrates seamlessly with other Procore functionalities, facilitating better planning, execution, and monitoring of construction projects.
